- Operated with MINOR or ROBUST blower or with compressed air
- Cooled heating element tube
- Suitable for field applications when used in combination with a MINOR blower
The DIODE S easily puts you in control with a manual temperature knob.

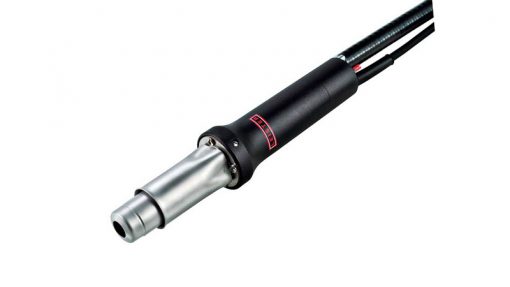

DIODE S
The DIODE S easily puts you in control with a manual temperature knob.
Technical Data
DIODE S – 230 V / 1600 W / push-fit nozzle / EU-plug
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 230 |
| Power | W | 1600 |
| Air hose | m | 3 |
| Approval mark |  |
|
| Temperature | °C | 20 – 600 |
| Size (L x ∅) | mm | 265 × 57 |
| Handle ∅ | mm | 40 |
| Weight | kg | 1.15 |
| Conformity mark |  |
|
| Protection class II |  |
DIODE S – 230 V / 1600 W / screw-on nozzle / EU-plug
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 230 |
| Power | W | 1600 |
| Air hose | m | 3 |
| Approval mark | |
|
| Temperature | °C | 20 – 600 |
| Size (L x ∅) | mm | 265 × 57 |
| Handle ∅ | mm | 40 |
| Weight | kg | 1.15 |
| Conformity mark | |
|
| Protection class II | |
