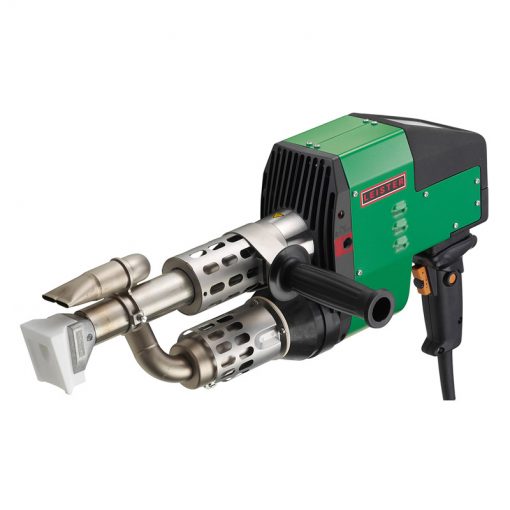

The WELDPLAST S4 is the first extrusion welder of its kind with brushless, maintenance-free motor for generating preheated air. Output of up to 4 kg / 8.8 lbs. of extrudate per hour is made possible thanks to the S4’s powerful drive system.
The WELDPLAST S4 is the first extrusion welder of its kind with brushless, maintenance-free motor for generating preheated air. Output of up to 4 kg / 8.8 lbs. per hour is possible thanks to the S4’s powerful drive system.
WELDPLAST S4 – 230 V / 3680 W / side hot-air guide / EU-plug
| Attribute | Unit | Value |
|---|---|---|
| Welding rod | mm ∅ | 3 – 4 |
| Voltage | V~ | 230 |
| Power | W | 3680 |
| Max. air outlet temperature | °C | 350 |
| Max. Plastification temperature | °C | 260 |
| Material | PE / PP | |
| Output | kg / h | 1.5 – 4.0 |
| Size (L × B × H) | mm | 560 × 110 × 300 |
| Weight | kg | 8.7 |
| Conformity mark |  |
|
| Protection class I |  |
WELDPLAST S4 – 230 V / 3680 W / top hot-air guide / EU-plug
| Attribute | Unit | Value |
|---|---|---|
| Welding rod | mm ∅ | 4 – 5 |
| Voltage | V~ | 230 |
| Power | W | 3680 |
| Max. air outlet temperature | °C | 350 |
| Max. Plastification temperature | °C | 260 |
| Material | PE / PP | |
| Output | kg / h | 1.5 – 4.0 |
| Size (L × B × H) | mm | 560 × 110 × 300 |
| Weight | kg | 8.7 |
| Conformity mark | |
|
| Protection class I | |
