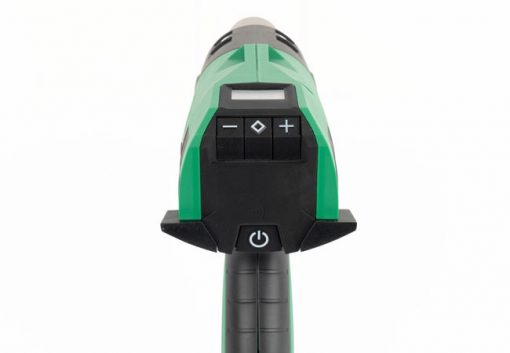

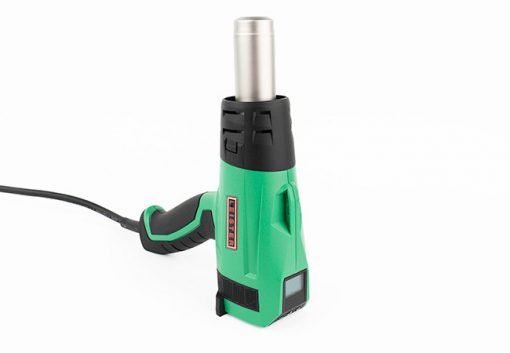

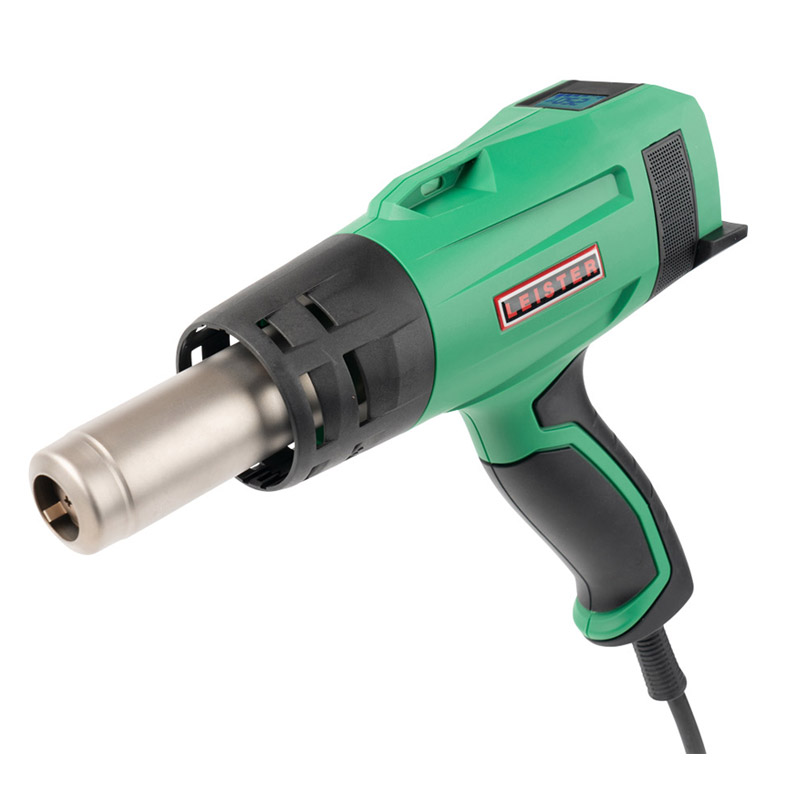

SOLANO AT

This is why it is lighter, quieter and more durable than any other hot-air hand tool. Discover its unbeatable advantages – SOLANO AT.

หมวดหมู่: Hot Air Hand Tools, Plastic Welding ป้ายกำกับ: Plastic Welding - Flooring & Interior Decoration, Plastic Welding - GEO & Civil Engineering, Plastic Welding - Plastic Fabrication, Plastic Welding - Roofing, Plastic Welding - Technical Textiles & Industrial Fabrics
  • รายละเอียดเพิ่มเติม
  • Technical Data
  • Downloads
  • Long-lasting: thanks to the brushless motor and sturdy LEISTER heating element
  • Light and quiet: weighs 750 g and runs extremely smoothly at <65dB for efficient and effortless operation
  • Economical: saves up to 40% energy in Eco mode
  • Ergonomic: due to its convenient design
  • Safe: due to its multi-level system to protect against overheating
  • Simple: due to its intuitive operation
  • Controlled: consistent performance due to the intelligent temperature controller
  • Versatile: suitable for numerous applications in various industries

From our dialog with you, we know what you need. When we were developing the SOLANO AT, we focused on your requirements. This is why it is lighter, quieter and more durable than any other hot-air hand tool. Discover its unbeatable advantages – SOLANO AT.

Technical Data

SOLANO AT – 230 V / 2300 W / EU-plug, box (162.264 casing)

Attribute Unit Value
Voltage V~ 230
Frequency Hz 50 / 60
Power W 2300
Air temperature °C 50 – 650
Air volume (20°C) l/min 160 – 300 [550]
Noise emission level dB(A) < 65
Weight kg 0.75
Size (L × B × H) mm 270 × 75 × 240
Handle ∅ mm 45
Conformity mark CE Certification
Protection class II ProtectionClass II

SOLANO AT – 230 V / 2300 W / CH plug, box (162.266 casing)

Attribute Unit Value
Voltage V~ 230
Frequency Hz 50 / 60
Power W 2300
Air temperature °C 50 – 650
Air volume (20°C) l/min 160 – 300 [550]
Noise emission level dB(A) < 65
Weight kg 0.75
Size (L × B × H) mm 270 × 75 × 240
Handle ∅ mm 45
Conformity mark CE Certification
Protection class II ProtectionClass II

SOLANO AT – 230 V / 2300 W / UK plug, box (162.268 casing)

Attribute Unit Value
Voltage V~ 230
Frequency Hz 50 / 60
Power W 2300
Air temperature °C 50 – 650
Air volume (20°C) l/min 160 – 300 [550]
Noise emission level dB(A) < 65
Weight kg 0.75
Size (L × B × H) mm 270 × 75 × 240
Handle ∅ mm 45
Conformity mark CE Certification
Protection class II ProtectionClass II

SOLANO AT – 230 V / 2300 W / AUS plug, box (162.270 casing)

Attribute Unit Value
Voltage V~ 230
Frequency Hz 50 / 60
Power W 2300
Air temperature °C 50 – 650
Air volume (20°C) l/min 160 – 300 [550]
Noise emission level dB(A) < 65
Weight kg 0.75
Size (L × B × H) mm 270 × 75 × 240
Handle ∅ mm 45
Conformity mark CE Certification
Protection class II ProtectionClass II

SOLANO AT – 230 V / 2300 W / CN plug, box (162.278 casing)

Attribute Unit Value
Voltage V~ 230
Frequency Hz 50 / 60
Power W 2300
Air temperature °C 50 – 650
Air volume (20°C) l/min 160 – 300 [550]
Noise emission level dB(A) < 65
Weight kg 0.75
Size (L × B × H) mm 270 × 75 × 240
Handle ∅ mm 45
Conformity mark CE Certification
Protection class II ProtectionClass II

SOLANO AT – 120 V / 1800 W / US plug, box (162.274 casing)

Attribute Unit Value
Voltage V~ 120
Frequency Hz 50 / 60
Power W 1800
Noise emission level dB(A) < 65
Air temperature °C 50 – 650
Air volume (20°C) l/min 160 – 300 [550]
Weight kg 0.75
Size (L × B × H) mm 270 × 75 × 240
Handle ∅ mm 45
Conformity mark CE Certification
Protection class II ProtectionClass II

SOLANO AT – 100 V / 1500 W / JP plug, box (162.276 casing)

Attribute Unit Value
Voltage V~ 100
Frequency Hz 50 / 60
Power W 1500
Air temperature °C 50 – 650
Air volume (20°C) l/min 160 – 300 [550]
Noise emission level dB(A) < 65
Weight kg 0.75
Size (L × B × H) mm 270 × 75 × 240
Handle ∅ mm 45
Conformity mark CE Certification
Protection class II ProtectionClass II

Downloads

General Catalogs :
GC – General Catalog Plastic Welding (12,92 MB)
BR – Accessories Hot air Hand Tools (3,63 MB)


Manuals :
QG – SOLANO AT (0,74 MB)
Safety instructions – Hand Tools (19,31 MB)
BA – SOLANO AT (4,56 MB)
