WELDPLAST S1

WELDPLAST S1 for seam quality with plate thicknesses of 4 to 12 mm and a maximum output power of 0.8 kg/h (PVC: up to 1.15 kg/h).

หมวดหมู่: , ป้ายกำกับ:

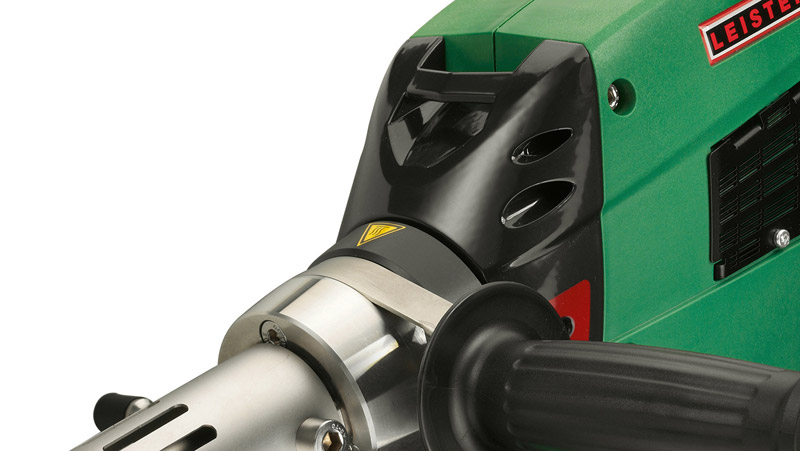

  • Functional, ergonomic design with comfort grip areas
  • Output power of 0.8 kg (1.8 lbs.)/hr (HDPE)
  • Integrated LED lighting and hanging point
  • Can work with all typical kinds of plastic

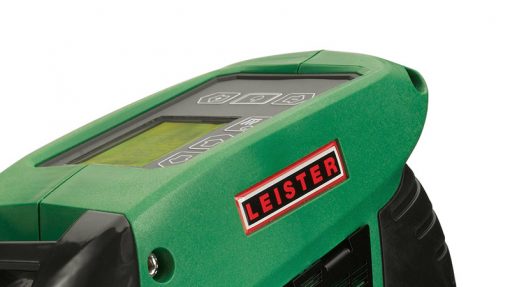

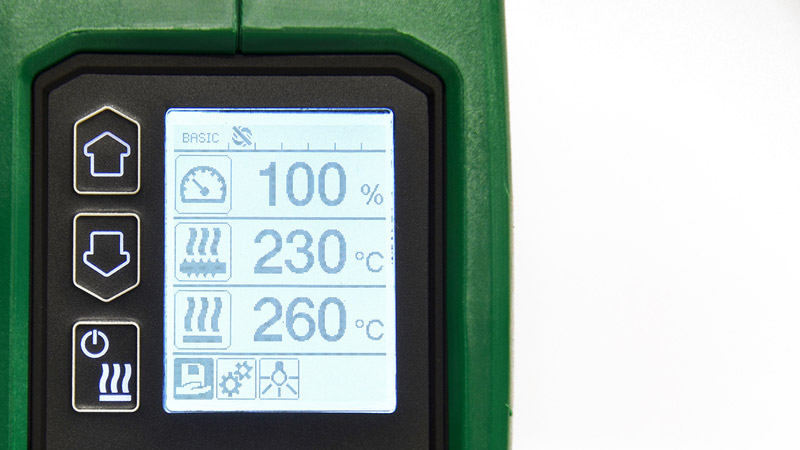

  • Multifunction panel with predefined welding parameters

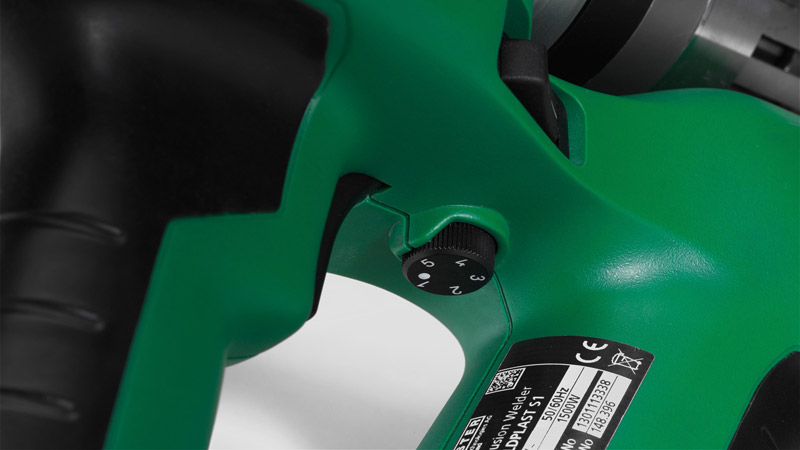

  • BL blower, adjustable air volume

With the new WELDPLAST S1 compact extrusion welder, you can achieve perfect seam quality with plate thicknesses of 4 to 12 mm and a maximum output power of 0.8 kg / 1.8 lbs. per hour (PVC: up to 1.15 kg / 2.5 lbs. per hr.) The double-sided, twist-free wire intake can work with 3 to 4 mm welding rod. Integrated LED lighting, plus the innovative operating panel, are the perfect ways to monitor the process of welding all typical kinds of materials (such as PE, PP, PVC, PA, PVDF or ECTFE) – at all times. The ergonomic design, which offers several grip positions and holding options, allows you to work in comfort in areas that are difficult to access.

Technical Data

WELDPLAST S1 – 230 V / EU-plug

Attribute Unit Value
Voltage V~ 230
Power W 1600
Material HD-PE / LD-PE / PP / PVC-U / PVC-C / PVDF / ECTFE / PA
Max. air outlet temperature °C 360
Max. Plastification temperature °C 260
Welding rod mm ∅ 3 – 4
Output kg / h 0.2 – 0.8 (PVC < 1.15)
Size (L × B × H) mm 435 x 91 x 264
Integrated welding profiles HD-PE, PP, PVC-U,PVC-C, PVDF
Weight kg 4.7
Conformity mark CE Certification
Protection class I Protection Class I

WELDPLAST S1 – 120 V

Attribute Unit Value
Voltage V~ 120
Power W 1800
Material HD-PE / LD-PE / PP / PVC-U / PVC-C / PVDF / ECTFE / PA
Max. air outlet temperature °C 360
Max. Plastification temperature °C 260
Welding rod mm ∅ 3 – 4
Output kg / h 0.2 – 0.8 (PVC < 1.15)
Size (L × B × H) mm 435 x 91 x 264
Integrated welding profiles HD-PE, PP, PVC-U,PVC-C, PVDF
Weight kg 4.7
Conformity mark CE Certification
Protection class I Protection Class I

WELDPLAST S1 – 100 V

Attribute Unit Value
Voltage V~ 100
Power W 1500
Material HD-PE / LD-PE / PP / PVC-U / PVC-C / PVDF / ECTFE / PA
Max. air outlet temperature °C 360
Max. Plastification temperature °C 260
Welding rod mm ∅ 3 – 4
Output kg / h 0.2 – 0.8 (PVC < 1.15)
Size (L × B × H) mm 435 x 91 x 264
Integrated welding profiles HD-PE, PP, PVC-U,PVC-C, PVDF
Weight kg 4.7
Conformity mark CE Certification
Protection class I Protection Class I
