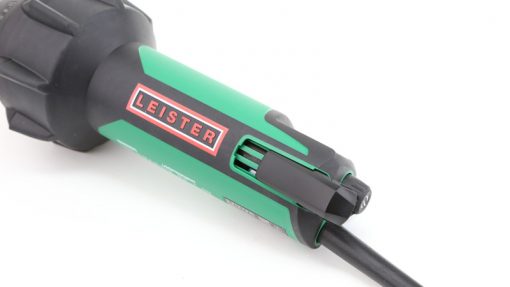

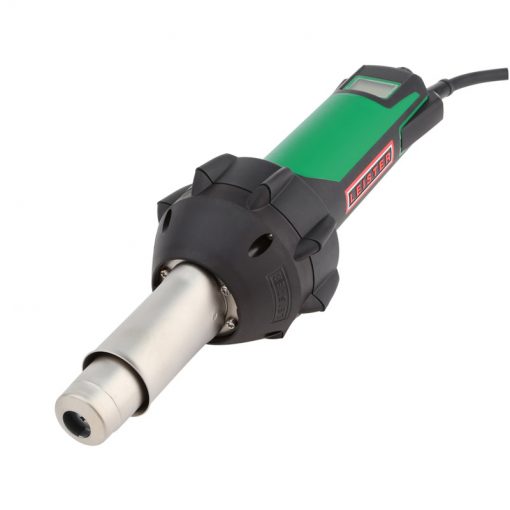

TRIAC AT

The TRIAC AT is an intelligent hot-air hand tool for welding and shrinking plastics that is suitable for on-site use.

หมวดหมู่: , ป้ายกำกับ: , , , ,
  • Suitable for the work site
  • Closed-loop controlled temperature
  • Open loop controlled air volume
  • Intelligent «e-Drive» operating unit
  • Ergonomic handling
  • Modern design
  • Swiss made

The TRIAC AT is an intelligent hot-air hand tool for welding and shrinking plastics that is suitable for on-site use. It is designed for the needs of even the most demanding professional. Every tool undergoes stringent quality checks prior to leaving the factory in Switzerland. This high-quality hot-air hand tool is equipped for all situations. Its universal areas of application are virtually unlimited. The TRIAC AT will continue to prove its merit in any weather condition and is just as effective outside as it is indoors – all during continuous operation.

Technical Data

TRIAC AT – 230 V / 1600 W / EU-plug

Attribute Unit Value
Power W 1600
Voltage V~ 230
Approval mark Sicherheitszeichen-S-+
Temperature °C 45 – 620
Air volume (20°C) l/min 160 – 240
Size (L x ∅) mm 335 × 90
Handle ∅ mm 56
Weight kg 1
Conformity mark CE Certification
Protection class II ProtectionClass II

TRIAC AT – 230 V / 1600 W / screw-on / EU-plug

Attribute Unit Value
Power W 1600
Voltage V~ 230
Approval mark Sicherheitszeichen-S-+
Temperature °C 45 – 620
Air volume (20°C) l/min 160 – 240
Size (L x ∅) mm 335 × 90
Handle ∅ mm 56
Weight kg 1
Conformity mark CE Certification
Protection class II ProtectionClass II

Downloads

General Catalogs :
GC – General Catalog Plastic Welding (12,92 MB)
BR – Accessories Hot air Hand Tools (3,63 MB)

Manuals :
BA – TRIAC AT – th (4,67 MB)
BA – TRIAC AT – en (4,53 MB)
Safety instructions – Hand Tools (19,31 MB)

Brochures :
BR – Roofing (2,86 MB)
BR – Plastic Fabrication (7,75 MB)



VDO

Leister TRIAC AT Hot air tool
