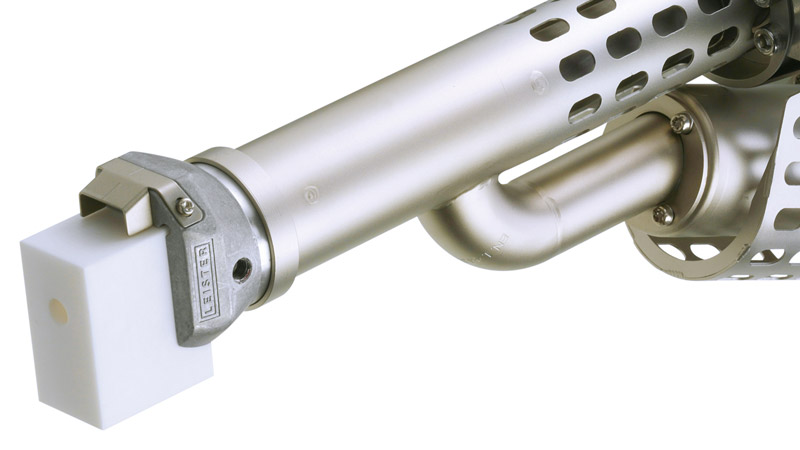

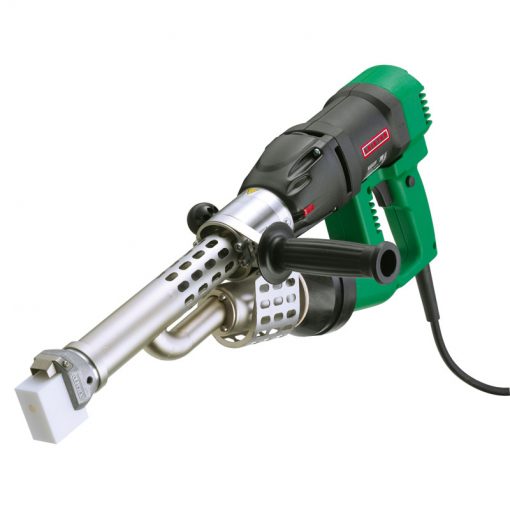

FUSION 3C

The somewhat shorter FUSION 3C provides an astounding output volume of up to 3.6 kilograms (8 lbs.) per hour.

The somewhat shorter FUSION 3C provides an astounding output volume of up to 3.6 kilograms (8 lbs.) per hour.

Technical Data

FUSION 3C – 230 V / 3200 W / Welding rod ∅ 3 – 4 mm / EU-plug

Attribute	Unit	Value
Welding rod	mm ∅	3 – 4
Output ∅ 3	kg / h	2.0 – 2.5
Output ∅ 4	kg / h	2.7 – 3.6
Output PP ∅ 3	kg / h	1.8 – 2.3
Output PP ∅ 4	kg / h	2.5 – 3.4
Voltage	V~	230
Power	W	3200
Material		PE / PP
Max. air outlet temperature	°C	350
Max. Plastification temperature	°C	320
Output PE ∅ 4	kg / h	2.1 – 2.6
Output PE ∅ 5	kg / h	2.7 – 3.6
Output PP ∅ 5	kg / h	2.5 – 3.4
Size (L × B × H)	mm	588 × 98 × 225
Weight	kg	6.9
Conformity mark
Protection class II

FUSION 3C – 230 V / 3200 W / Welding rod ∅ 4 – 5 mm / EU-plug

Attribute	Unit	Value
Welding rod	mm ∅	4 – 5
Output PE ∅ 4	kg / h	2.1 – 2.6
Output PE ∅ 5	kg / h	2.7 – 3.6
Output PP ∅ 4	kg / h	1.8 – 2.4
Output PP ∅ 5	kg / h	2.5 – 3.4
Voltage	V~	230
Power	W	3200
Material		PE / PP
Max. air outlet temperature	°C	350
Max. Plastification temperature	°C	320
Output ∅ 3	kg / h	2.0 – 2.5
Output ∅ 4	kg / h	2.7 – 3.6
Output PP ∅ 3	kg / h	1.8 – 2.3
Size (L × B × H)	mm	588 × 98 × 225
Weight	kg	6.9
Conformity mark
Protection class II
