Plastic Welding ApplicationTechnical Textiles & Industrial Fabrics

VARIANT T1 TAPE

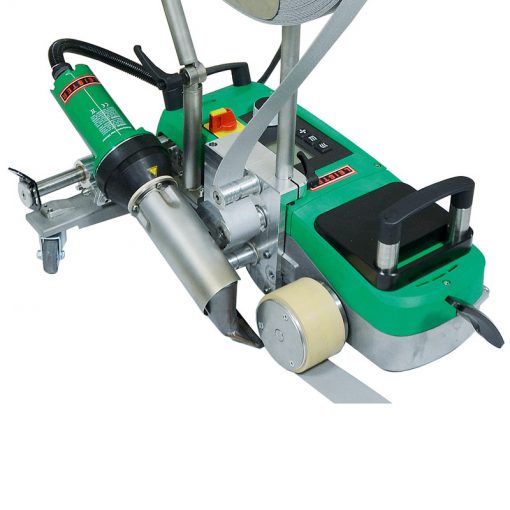

The VARIANT T1 TAPE used for welding webbing and reinforcement tapes and anti-vandalism tapes in vehicle tarpaulin production.

หมวดหมู่: , , ป้ายกำกับ:
  • Fastest, most precise automatic tape welding tool (up to 18 m/min)
  • “e-Drive” operating unit
  • Easy to use
  • Taut tape guidance
  • Kits for converting VARIANT T1 Overlap to 25 or 50 mm TAPE

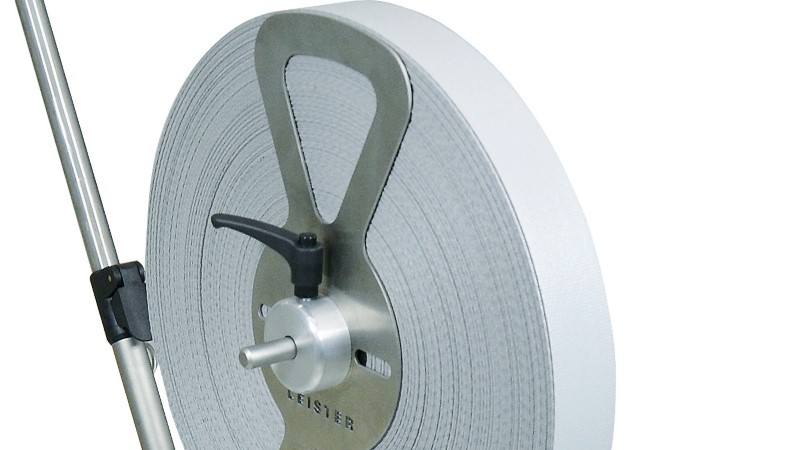

Used for welding reinforcement and anti-vandalism tapes in vehicle tarpaulin production. Thanks to the “e-Drive” operating concept, setting the relevant welding parameters couldn’t be easier. The tape holder and the newly developed guide rollers guide the tape under the pressure roller, keeping it taut right up to the final centimeter.

Technical Data

VARIANT T1 BAND 25 mm – 230 V / 3680 W / EU-plug

ttribute Unit Value
Voltage V~ 230
Power W 3680
Weld seam width mm 25
Temperature °C 100 -620
Air flow range % 50 – 100
Speed m/min 1.5 – 18
Size (L × B × H) mm 700 × 415 × 85
Weight kg 28
Conformity mark CE Certification
Approval mark Sicherheitszeichen-S-+
Protection class I Protection Class I

VARIANT T1 BAND 50 mm – 230 V / 3680 W / EU-plug

Attribute Unit Value
Voltage V~ 230
Power W 3680
Weld seam width mm 50
Temperature °C 100 -620
Air flow range % 50 – 100
Speed m/min 1.5 – 18
Size (L × B × H) mm 700 × 415 × 85
Weight kg 28
Conformity mark CE Certification
Approval mark Sicherheitszeichen-S-+
Protection class I Protection Class I

VARIANT T1 BAND 25 mm – 400 V / 5700 W / EU-plug

Attribute Unit Value
Voltage V~ 400
Power W 5700
Weld seam width mm 25
Temperature °C 100 -620
Air flow range % 50 – 100
Speed m/min 1.5 – 18
Size (L × B × H) mm 700 × 415 × 85
Weight kg 28
Conformity mark CE Certification
Approval mark Sicherheitszeichen-S-+
Protection class I Protection Class I

VARIANT T1 BAND 50 mm – 400 V / 5700 W / EU-plug

Attribute Unit Value
Voltage V~ 400
Power W 5700
Weld seam width mm 50
Temperature °C 100 -620
Air flow range % 50 – 100
Speed m/min 1.5 – 18
Size (L × B × H) mm 700 × 415 × 85
Weight kg 28
Conformity mark CE Certification
Approval mark Sicherheitszeichen-S-+
Protection class I Protection Class I



Downloads

General Catalogs :
GC – General Catalog Plastic Welding (12,92 MB)
BR – Accessories Hot air Hand Tools (3,63 MB)

Manuals :
BA – VARIANT T1 Tape (20,08 MB)
