UNIDRIVE 500

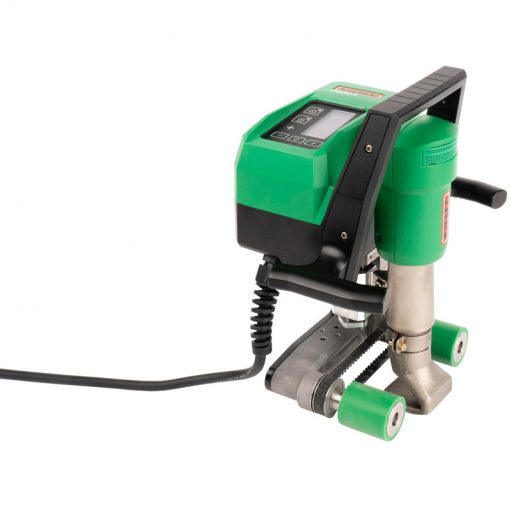

The UNIDRIVE 500 combines manual and automatic welding in a 4.5 kg lightweight and easy-to-handle automatic welder. Thanks to its overlap technology, it is ideal for welding all thermoplastic single ply membranes such as PVC and TPO.

หมวดหมู่: , , ป้ายกำกับ:
  • Reliable: Ergonomic handle for safe pressure during manual welding
  • Safe: Constant parameters and reliable quality – even with undervoltage
  • Fast: Three times faster than manual welding

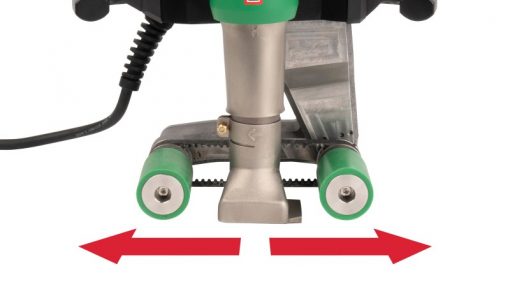

  • Customized: Reversible drive allows for welding in either direction
  • Practical: Compact and lightweight automatic welder: 4.5 kg, 30 cm high
  • Flexible: Stainless steel nozzle for all welding application
  • Economical: Maintenance-free, brushless motors

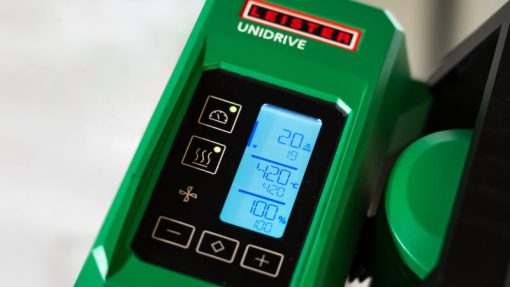

  • Intuitive: Simple user guidance and operation via display

UNIDRIVE 500 – safe and economical – everywhere
The compact UNIDRIVE 500 automatic welder impresses with its many advantages. Guided by two handles, you will achieve the right pressure to ensure safe welding. Changing direction – via key combination and dual drive, it couldn’t be simpler! The UNIDRIVE 500 welds every overlap. Everywhere, even if space is tight, and three times faster than manual welding. Lap welding with the UNIDRIVE 500 – safe and economical – everywhere.

Technical Data

UNIDRIVE 500 – 40 mm / 220-240 V / 2400 W / EU plug / silicone rollerss

Attribute Unit Value
Voltage V~ 220 – 240
Frequency Hz 50 / 60
Power W 2400
Air volume % 45 -100
Drive Speed m/min 0.7 – 4.5
Noise emission level Lpa (dB) 70 (K = 3 dB)
Size (L × B × H) mm 297 x 275 x 173
Weight kg 4.5
Conformity mark CE Certification
Protection class I Protection Class I

UNIDRIVE 500 – 40 mm / 220-240 V / 2400 W / CH plug / silicone rollers

Attribute Unit Value
Voltage V~ 220 – 240
Frequency Hz 50 / 60
Power W 2400
Air volume % 45 -100
Drive Speed m/min 0.7 – 4.5
Noise emission level Lpa (dB) 70 (K = 3 dB)
Size (L × B × H) mm 297 x 275 x 173
Weight kg 4.5
Conformity mark CE Certification
Protection class I Protection Class I

UNIDRIVE 500 – 40 mm / 220-240 V / 2400 W / CEE plug 3 pol. / silicone rollers

Attribute Unit Value
Voltage V~ 220 – 240
Frequency Hz 50 / 60
Power W 2400
Air volume % 45 -100
Drive Speed m/min 0.7 – 4.5
Noise emission level Lpa (dB) 70 (K = 3 dB)
Size (L × B × H) mm 297 x 275 x 173
Weight kg 4.5
Conformity mark CE Certification
Protection class I Protection Class I

UNIDRIVE 500 – 40 mm / 100-120 V / 1800 W / US plug / silicone rollers

Attribute Unit Value
Voltage V~ 100 – 120
Frequency Hz 50 / 60
Power W 1800
Air volume % 45 -100
Drive Speed m/min 0.7 – 4.5
Noise emission level Lpa (dB) 70 (K = 3 dB)
Size (L × B × H) mm 297 x 275 x 173
Weight kg 4.5
Conformity mark CE Certification
Protection class I Protection Class I

UNIDRIVE 500 – 40 mm / 100-120 V / 1800 W / UK plug / silicone rollers

Attribute Unit Value
Voltage V~ 100 – 120
Frequency Hz 50 / 60
Power W 1800
Air volume % 45 -100
Drive Speed m/min 0.7 – 4.5
Noise emission level Lpa (dB) 70 (K = 3 dB)
Size (L × B × H) mm 297 x 275 x 173
Weight kg 4.5
Conformity mark CE Certification
Protection class I Protection Class I

UNIDRIVE 500 – 40 mm / 100 V / 1550 W / JP plug / silicone rollers

Attribute Unit Value
Voltage V~ 100
Frequency Hz 50 / 60
Power W 1550
Air volume % 45 -100
Drive Speed m/min 0.7 – 4.5
Noise emission level Lpa (dB) 70 (K = 3 dB)
Size (L × B × H) mm 297 x 275 x 173
Weight kg 4.5
Conformity mark CE Certification
Protection class I Protection Class I

UNIDRIVE 500 – 30 mm / 220-240 V / 2400 W / EU plug / silicone rollers

Attribute Unit Value
Voltage V~ 220 – 240
Frequency Hz 50 / 60
Power W 2400
Air volume % 45 -100
Drive Speed m/min 0.7 – 4.5
Noise emission level Lpa (dB) 70 (K = 3 dB)
Size (L × B × H) mm 297 x 275 x 173
Weight kg 4.5
Conformity mark CE Certification
Protection class I Protection Class I

UNIDRIVE 500 – 40 mm / 220-240 V / 2400 W / CEE plug 3 pol. / steel rolls

Attribute Unit Value
Voltage V~ 220 – 240
Frequency Hz 50 / 60
Power W 2400
Air volume % 45 -100
Drive Speed m/min 0.7 – 4.5
Noise emission level Lpa (dB) 70 (K = 3 dB)
Size (L × B × H) mm 297 x 275 x 173
Weight kg 4.5
Conformity mark CE Certification
Protection class I Protection Class I

UNIDRIVE 500 – 15 mm / 220-240 V / 2400 W / CEE plug 3 pol. / steel rolls

Attribute Unit Value
Voltage V~ 220 – 240
Frequency Hz 50 / 60
Power W 2400
Air volume % 45 -100
Drive Speed m/min 0.7 – 4.5
Noise emission level Lpa (dB) 70 (K = 3 dB)
Size (L × B × H) mm 297 x 275 x 173
Weight kg 4.5
Conformity mark CE Certification
Protection class I Protection Class I



Downloads

General Catalogs :
GC – General Catalog Plastic Welding (12,92 MB)
BR – Accessories Hot air Hand Tools (3,63 MB)

Manuals :
QG UNIDRIVE 500 (5,37 MB)
Safety instructions – Automatic Welders / Extrusion Welders / Welding Machines (33,26 MB)
BA UNIDRIVE 500 – th (2,24 MB)
BA UNIDRIVE 500 – en (2,00 MB)

VDO

UNIDRIVE 500 – safe and economical – everywhere

UNIDRIVE 500 from LEISTER closes the gap between manual and automatic welding

UNIDRIVE 500 from LEISTER closes the gap between manual and automatic welding
