The new IGNITER ignition blower from Leister has been specially developed for installation into pellet and wood chip boilers. The interface was selected so that the ignition blowers can easily be installed into any heating boiler.

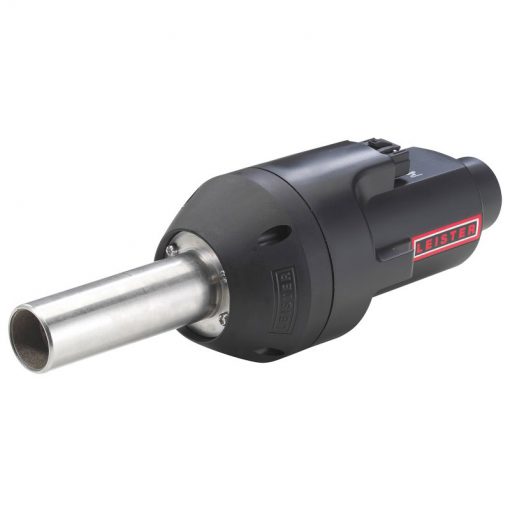

IGNITER BM4
Specially developed for installation in pellet and woodchip heating systems with an output of up to 1600 W.
Technical Data
IGNITER BM4 – 230 V / 1600 W / 50 Hz
Attribute | Unit | Value |
---|---|---|
Voltage | V~ | 230 |
Frequency | Hz | 50 |
Power | W | 1600 |
Min. air volume (20°C) | l/min | 230 |
Air pressure | kPa | 2.48 |
Max. air outlet temperature | °C | 600 |
Noise emission level | dB(A) | 68 |
Aperture ∅ | mm | 90 |
Weight | kg | 1.0 |
Length | mm | 283 |
Conformity mark | ||
Approval mark | ||
Protection class II |
IGNITER BM4 – 230 V / 600 W / 50 Hz
Attribute | Unit | Value |
---|---|---|
Voltage | V~ | 230 |
Frequency | Hz | 50 |
Power | W | 600 |
Min. air volume (20°C) | l/min | 80 |
Air pressure | kPa | 2.48 |
Max. air outlet temperature | °C | 500 |
Noise emission level | dB(A) | 58 |
Aperture ∅ | mm | 90 |
Weight | kg | 1.0 |
Length | mm | 283 |
Conformity mark | ||
Approval mark | ||
Protection class II |
IGNITER BM4 – 230 V / 1100 W / 50 Hz
Attribute | Unit | Value |
---|---|---|
Voltage | V~ | 230 |
Frequency | Hz | 50 |
Power | W | 1100 |
Min. air volume (20°C) | l/min | 230 |
Air pressure | kPa | 2.48 |
Max. air outlet temperature | °C | 600 |
Noise emission level | dB(A) | 68 |
Aperture ∅ | mm | 90 |
Weight | kg | 1.0 |
Length | mm | 283 |
Conformity mark | ||
Approval mark | ||
Protection class II |
IGNITER BM4 – 120 V / 1550 W / 60 Hz
Attribute | Unit | Value |
---|---|---|
Voltage | V~ | 120 |
Frequency | Hz | 60 |
Power | W | 1550 |
Min. air volume (20°C) | l/min | 230 |
Air pressure | kPa | 2.48 |
Max. air outlet temperature | °C | 600 |
Noise emission level | dB(A) | 68 |
Aperture ∅ | mm | 90 |
Weight | kg | 1.0 |
Length | mm | 283 |
Conformity mark | ||
Approval mark | ||
Protection class II |
IGNITER BM4 – 120 V / 1100 W / 60 Hz
Attribute | Unit | Value |
---|---|---|
Voltage | V~ | 120 |
Frequency | Hz | 60 |
Power | W | 1100 |
Min. air volume (20°C) | l/min | 230 |
Air pressure | kPa | 2.48 |
Max. air outlet temperature | °C | 600 |
Noise emission level | dB(A) | 68 |
Aperture ∅ | mm | 90 |
Weight | kg | 1.0 |
Length | mm | 283 |
Conformity mark | ||
Approval mark | ||
Protection class II |
IGNITER BM4 – 230 V / 1100 W / 50 Hz / with M14 screw adapter
Attribute | Unit | Value |
---|---|---|
Voltage | V~ | 230 |
Frequency | Hz | 50 |
Power | W | 1100 |
Min. air volume (20°C) | l/min | 230 |
Air pressure | kPa | 2.48 |
Max. air outlet temperature | °C | 600 |
Noise emission level | dB(A) | 68 |
Aperture ∅ | mm | 90 |
Weight | kg | 1.0 |
Length | mm | 283 |
Conformity mark | ||
Approval mark | ||
Protection class II |
