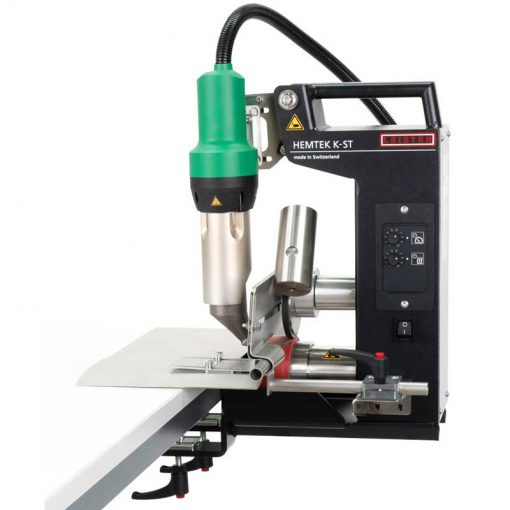

HEMTEK K-ST

Piping creation made easy

หมวดหมู่: Plastic Welding, Welding Machines ป้ายกำกับ: Plastic Welding - Technical Textiles & Industrial Fabrics
  • รายละเอียดเพิ่มเติม
  • Technical Data
  • Downloads
  • VDO

Based on your individual needs, you can produce your own piping with the HEMTEK K-ST. Because the HEMTEK K-ST is extremely flexible, you can react even faster to specific customer inquiries. The easy-to-use, infinitely-adjustable guide enables process-reliable piping creation with different lug widths. The foot pedal means you have both hands free and can use them to guide the material. This allows you to concentrate fully on the welding process.

  • Piping guide: Process-secure, easy guidance of the piping cord up to 13mm for optimum results.

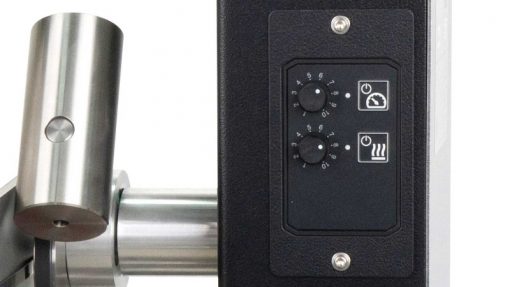

  • Control panel: The intuitive control unit guarantees a stress-free welding experience. The temperature and speed can be adjusted easily. The integrated cool-down mode gently cools the machine.
  • Table clamp: The quick-clamp lock enables you to mount the machine quickly and easily onto any work table.
  • Foot pedal: The HEMTEK K-ST can be operated comfortably with the foot pedal so both hands are free to guide the material

Technical Data

HEMTEK K-ST / 230 V / 8 mm / 2350 W / EU-plug

Attribute Unit Value
Power W 2350
Voltage V~ 230
Weld seam width mm 8
Frequency Hz 50/60
Temperature °C 100 – 650
Drive Speed m/min 0.8 – 12
Noise emission level dB(A) 70 (K = 3 dB)
Size (L × B × H) mm 433 × 350 × 600
Weight (incl. table mounting) kg 27
Conformity mark CE Certification
Protection class I Protection Class I

HEMTEK K-ST / 230 V / 8 mm / 1800 W / US plug

Attribute Unit Value
Power W 1800
Voltage V~ 120
Frequency Hz 50/60
Temperature °C 100 – 650
Drive Speed m/min 0.8 – 12
Noise emission level dB(A) 70 (K = 3 dB)
Size (L × B × H) mm 433 × 350 × 600
Weight (incl. table mounting) kg 27
Conformity mark CE Certification
Protection class I Protection Class I



Downloads

General Catalogs :
GC – General Catalog Plastic Welding (12,92 MB)
BR – Accessories Hot air Hand Tools (3,63 MB)


Manuals :
Safety instructions – Automatic Welders / Extrusion Welders / Welding Machines (33,26 MB)
BA – HEMTEK ST (13,58 MB)
BA – HEMTEK ST (13,16 MB)
QG – HEMTEK ST/K-ST (0,86 MB)



VDO

Leister HEMTEK K-ST keder welding
