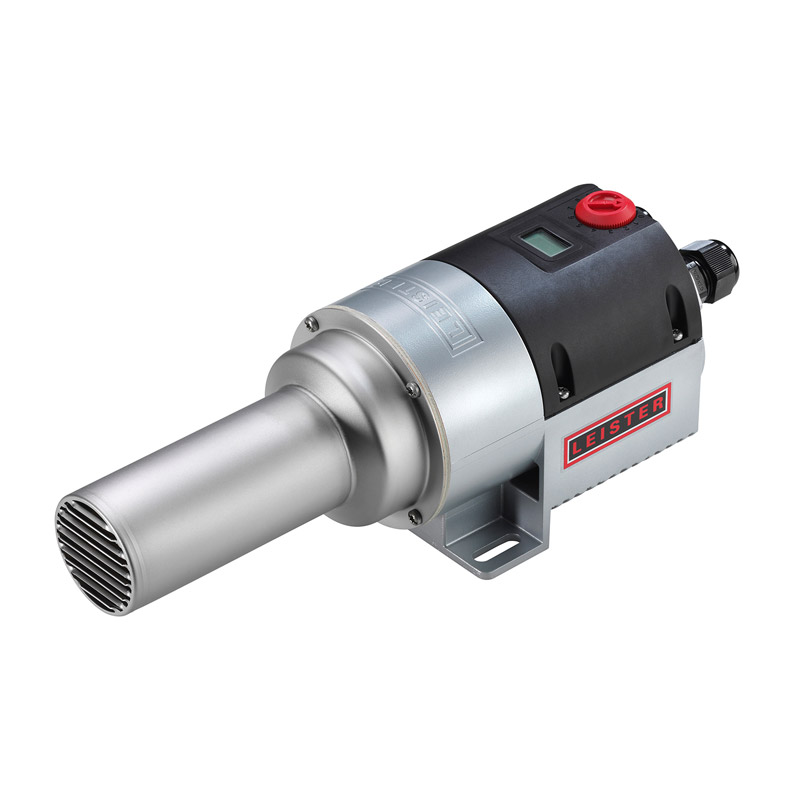

LHS 61S SYSTEM

High performance. Remote control interface for Leister CSS or SPS temperature controller.

หมวดหมู่: , ป้ายกำกับ: , , , ,
  • LHS 61S SYSTEM
  • Easy to integrate (mounted from above)
  • Overheat protection with alarm output for the heating element
  • Tool overheat protection with alarm output
  • Infinitely adjustable heating capacity via potentiometer
  • Remote control via analogue interface (4 – 20 mA or 0 – 10 V)
  • Various open-loop and closed-loop control modes available for selection
  • Display (target/actual value display)

The LHS 61 series is your choice for high performance applications. The outlet diameter—62 mm (2.4 in.) for LHS 61S versions and 92 mm (3.6 in.) for LHS 61L versions—allows high air flows with up to 16 kW heating power.

Technical Data

LHS 61S SYSTEM – 3 x 230 V / 4.0 kW

Attribute Unit Value
Voltage V~ 3 x 230
Power W 4000
Max. air outlet temperature °C 650
Max. air inlet temperature °C 65
Max. ambient temperature °C 65
Relative humidity (non condensing) % 5 – 95
Max. inlet pressure kPa 100
Heating pipe diameter ∅ mm 62
Size (L × B × H) mm 363 × 114 × 136
Weight kg 3.15
Conformity mark CE Certification
Approval mark Sicherheitszeichen-S-+
Protection class I Protection Class I

LHS 61S SYSTEM – 3 x 230 V / 6.0 kW

Attribute Unit Value
Voltage V~ 3 x 230
Power W 6000
Max. air outlet temperature °C 650
Max. air inlet temperature °C 65
Max. ambient temperature °C 65
Relative humidity (non condensing) % 5 – 95
Max. inlet pressure kPa 100
Heating pipe diameter ∅ mm 62
Size (L × B × H) mm 363 × 114 × 136
Weight kg 3.15
Conformity mark CE Certification
Approval mark Sicherheitszeichen-S-+
Protection class I Protection Class I

LHS 61S SYSTEM – 1 x 400 V / 8.5 kW

Attribute Unit Value
Voltage V~ 1 x 400
Power W 8500
Max. air outlet temperature °C 650
Max. air inlet temperature °C 65
Max. ambient temperature °C 65
Relative humidity (non condensing) % 5 – 95
Max. inlet pressure kPa 100
Heating pipe diameter ∅ mm 62
Size (L × B × H) mm 363 × 114 × 136
Weight kg 3.15
Conformity mark CE Certification
Approval mark Sicherheitszeichen-S-+
Protection class I Protection Class I

LHS 61S SYSTEM – 3 x 400 V / 4.0 kW

Attribute Unit Value
Voltage V~ 3 x 400
Power W 4000
Max. air outlet temperature °C 650
Max. air inlet temperature °C 65
Max. ambient temperature °C 65
Relative humidity (non condensing) % 5 – 95
Max. inlet pressure kPa 100
Heating pipe diameter ∅ mm 62
Size (L × B × H) mm 363 × 114 × 136
Weight kg 3.15
Conformity mark CE Certification
Approval mark Sicherheitszeichen-S-+
Protection class I Protection Class I

LHS 61S SYSTEM – 3 x 400 V / 6.0 kW

Attribute Unit Value
Voltage V~ 3 x 400
Power W 6000
Max. air outlet temperature °C 650
Max. air inlet temperature °C 65
Max. ambient temperature °C 65
Relative humidity (non condensing) % 5 – 95
Max. inlet pressure kPa 100
Heating pipe diameter ∅ mm 62
Size (L × B × H) mm 363 × 114 × 136
Weight kg 3.15
Conformity mark CE Certification
Approval mark Sicherheitszeichen-S-+
Protection class I Protection Class I

LHS 61S SYSTEM – 3 x 400 V / 9.0 kW

Attribute Unit Value
Voltage V~ 3 x 400
Power W 9000
Max. air outlet temperature °C 650
Max. air inlet temperature °C 65
Max. ambient temperature °C 65
Relative humidity (non condensing) % 5 – 95
Max. inlet pressure kPa 100
Heating pipe diameter ∅ mm 62
Size (L × B × H) mm 363 × 114 × 136
Weight kg 3.15
Conformity mark CE Certification
Approval mark Sicherheitszeichen-S-+
Protection class I Protection Class I

LHS 61S SYSTEM – 1 x 480 V / 8.0 kW

Attribute Unit Value
Voltage V~ 1 x 480
Power W 8000
Max. air outlet temperature °C 650
Max. air inlet temperature °C 65
Max. ambient temperature °C 65
Relative humidity (non condensing) % 5 – 95
Max. inlet pressure kPa 100
Heating pipe diameter ∅ mm 62
Size (L × B × H) mm 363 × 114 × 136
Weight kg 3.15
Conformity mark CE Certification
Approval mark Sicherheitszeichen-S-+
Protection class I Protection Class I

LHS 61S SYSTEM – 3 x 480 V / 4.0 kW

Attribute Unit Value
Voltage V~ 3 x 480
Power W 4000
Max. air outlet temperature °C 650
Max. air inlet temperature °C 65
Max. ambient temperature °C 65
Relative humidity (non condensing) % 5 – 95
Max. inlet pressure kPa 100
Heating pipe diameter ∅ mm 62
Size (L × B × H) mm 363 × 114 × 136
Weight kg 3.15
Conformity mark CE Certification
Approval mark Sicherheitszeichen-S-+
Protection class I Protection Class I

LHS 61S SYSTEM – 3 x 480 V / 6.0 kW

Attribute Unit Value
Voltage V~ 3 x 480
Power W 6000
Max. air outlet temperature °C 650
Max. air inlet temperature °C 65
Max. ambient temperature °C 65
Relative humidity (non condensing) % 5 – 95
Max. inlet pressure kPa 100
Heating pipe diameter ∅ mm 62
Size (L × B × H) mm 363 × 114 × 136
Weight kg 3.15
Conformity mark CE Certification
Approval mark Sicherheitszeichen-S-+
Protection class I Protection Class I
