Energy savings effect thanks to hot air recirculation. Maximum air inlet temperature 350 °C / 662°F.
The latest generation of double-flange air heaters is specially designed to be used in hot-air recirculation mode. Depending on the air inlet and air outlet temperature, a massive amount of energy can be saved by “recycling” hot-air. On the inlet side, the device easily can tolerate temperatures up to 350°C / 662°F.

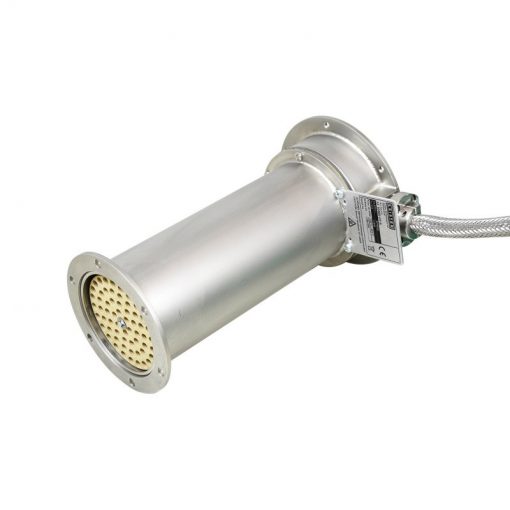

LE 10000 DF-R HT – 3 x 400 V / 15 kW
| Attribute | Unit | Value |
|---|---|---|
| Voltage | V~ | 3 x 400 |
| Power | W | 15000 |
| Max. air outlet temperature | °C | 900 |
| Min. air volume (20°C) | Nl/min – 15 kW HT | 800 |
| Max. air inlet temperature | °C | 350 |
| Max. ambient temperature | °C | 200 |
| Size (L x ∅) | mm | 257 × 146 |
| Weight | kg | 3.3 |
| Conformity mark |  |
|
| Protection class I |  |
